Description
bosch rexroth gear pump Bosch Rexroth 1518222700Bosch Rexroth 1518222700 AZPF 12 008RNF20MF External Gear Pump The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure dependent gap sealing and high precision manufacturing technology. Features Bosch Rexroth external gear pump High

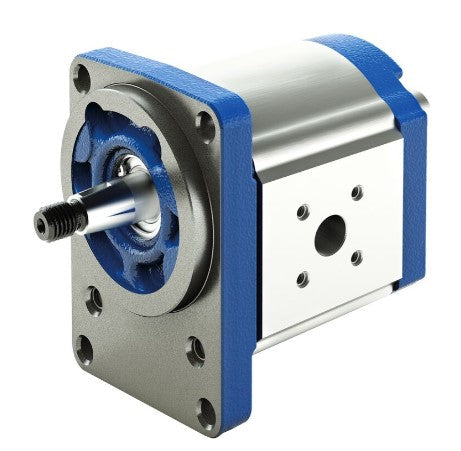

Bosch Rexroth 1518222700 AZPF-12-008RNF20MF
External Gear Pump
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Features
Bosch Rexroth external gear pump High Performance AZPF
Consistent high quality based on large-volume production
Long service life
Slide bearings for high loads
Drive shafts according to ISO or SAE and customer specific solutions
Line ports: connection flange or screw thread
Combination of several pumps possible
Technical Specifications
Type: External Gear Pump
Model: High Performance Platform F [4.0 to 28 cm3/U]
Series: Standard Bearing Diameter 18mm
Version: Zinc Placed or Aluminium, High Precision Cover Fixation
Direction of Rotation: Clockwise
Maximum Flow Rate: 16.0 l/min
Nominal Size: 8 cm³/rev
Continuous Pressure: Up to 250 Bar
Intermittent Pressure: Up to 280 Bar
Maximum Pressure Peaks: 300 Bar
Minimum Speed at p<100 bar: 500 rpm
Minimum Speed at p = 100 bar … 180 bar: 1000 rpm
Line Connection: Square Flange (German Version)
Seal Material: NBR
Can't Find A Part? Ask us!
We specialise in sourcing hard to find specials, oddballs & obsolete parts, get in touch if you can't see what you are looking for.
01555 772474
[email protected]
The purchaser of these items must ensure that they are satisfactory for use in the application for which they are intended.
No responsibility can be accepted if any products are incorrectly or inadequately fitted.
Goods may not be exact to image shown.
